Rollable Ultra Transparent LED Film Screen Manufacturer

  • Rollable LED Film Screen Support cropping and customization
  • Ultra 2M M with LED and Film
  • 90% Permeability
  • Directly mounted on glass
  • Anti-UV, no discoloration
  • Factory direct sales

Transparent LED Film Screen Core Advantages

Transparent LED Film Screen is a new display technology that has emerged in recent years. It encapsulates the pixels of traditional LED display screens on ultra-thin flexible films, making the display screen lighter, thinner, more transparent and more flexible.

  1. Breakpoint Continuation
    LED and circuit design adopts breakpoint continuous transmission, and the damage of a single LED will not affect the normal display of the following LEDs.
  2. Ultra-thin and flexible characteristics
    The most notable feature of the LED crystal film screen is that it is extremely thin (only 2mm) and has good flexibility. It can be bent, folded or even curled. This feature enables it to adapt to various special installation environments.
  3.  Lightweight design
    Transparent LED film screen weight is reduced by more than 90%(1PC only 1.3KG with power supply and LED controller). Also there is no need to install and fix the steel structure, which greatly reduces the cost of fixed structure, transportation cost and installation cost. It is the best choice in the field of glass and window display.
  4. High Transparency
    The LED crystal film screen uses a special polymer film as the substrate, with a light transmittance of 60%-90%. It does not affect the lighting of the building while ensuring the display effect, achieving a perfect balance between display and lighting.
  5. High refresh rate and wide viewing angle
    The professional-grade crystal film screen has a refresh rate of more than 3840Hz, and there is no flicker when watching; the horizontal/vertical viewing angles are both over 160°, ensuring consistent viewing effects at all angles.

Transparent LED Film Screen Series

See-Through Innovation, Light Up the Future

P5 Transparent LED Film Screen
P5 LED Film Screen

LED Film Size:1000*320MM
Resolution:200*64dots
Brightness:2500CD
Permeability:90%
Weight:2KG

P6 Transparent LED Film Screen
P6.25 Transparent LED Film

LED Film Size:1000*400MM
Resolution:160*64dots
Brightness:2000-4000CD
Permeability:92%
Weight:1.3KG

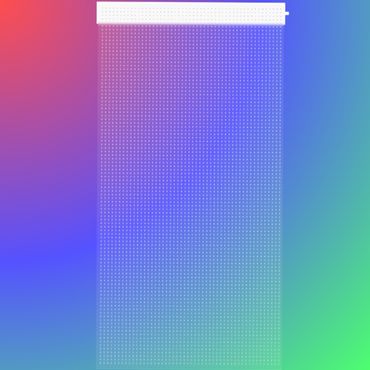

P8 Transparent LED Film Screen
P8 Flexible LED Film Screen

LED Film Size:1000*400MM
Resolution:125*50dots
Brightness:2000-4000CD
Permeability:92%
Weight:1.3KG

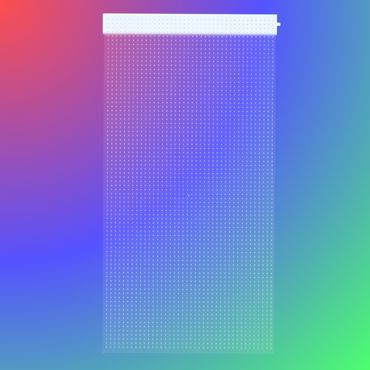

P10 Transparent LED Film Screen
P10 Crystal LED film Screen

LED Film Size:1000*400MM
Resolution:100*40dots
Brightness:2000-4000CD
Permeability:94%
Weight:1.3KG

P15 Transparent LED Film Screen
P15 LED Film Screen

LED Film Size:990*390MM
Resolution:66*26dots
Brightness:2000-4000CD
Permeability:94%
Weight:1.3KG

P20 Transparent LED Film Screen
P20 Film LED Screen

LED Film Size:1000*400MM
Resolution:50*20dots
Brightness:2000-4000CD
Permeability:95%
Weight:1.3KG

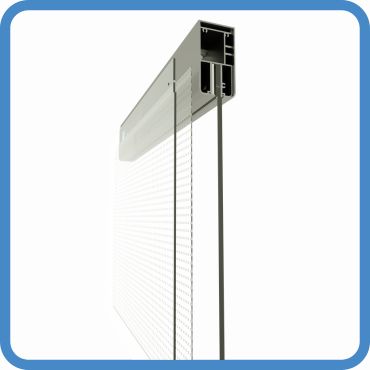

transparent film LED sign
Directional transparent film LED sign

For shopping malls, airports, hospitals, office halls, and queue display windows.

ultra transparent film led manufacturer
Customized Transparent LED Film Screen

This extended version is tailor-made for specific environments.

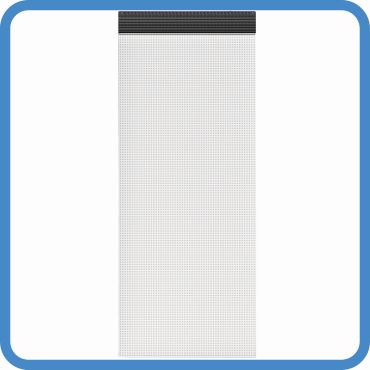

ultra transparent film led panel
Standard Type With Glass

Independent type with glass or acrylic panel, can be installed in places without glass.

9 Products Found.

Transparent LED Film Screen Application scenarios

Invisible Tech, Visible Impact

The most suitable place to apply LED crystal film screen

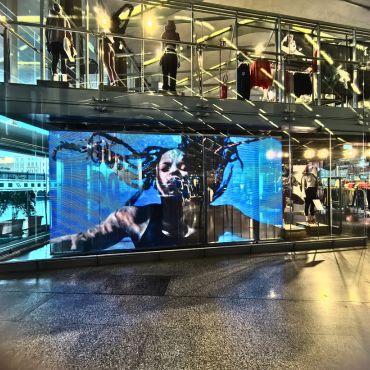

  • transparent film LED for retail store
    Retail Store

    The glass of a retail store is the most suitable place to install a Transparent LED Film Screen, which does not block the display, but can display videos and promotional information to attract customers to stay.

  • transparent film LED for Luxury Showcase

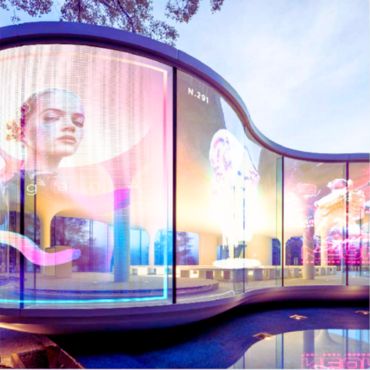

    Luxury Showcase

    Installing transparent film LED screens in luxury display windows can achieve transparent display + dynamic animation effect display, and also enhance the brand’s sense of technology

  • glass led screen manufacturer

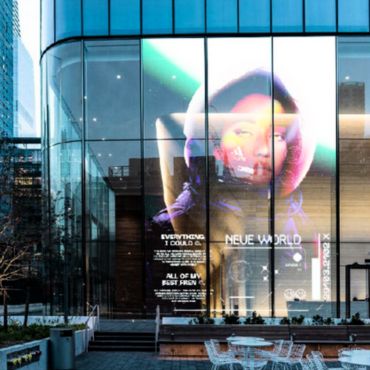

    Commercial Complex glass Curtain Wall

    It can be directly attached to the building facade glass to keep it transparent during the day and dynamically display advertisements or artistic content at night.

  • transparent film LED for Jewelry Stores
    Jewelry Store

    Jewelry symbolizes nobility and luxury, and transparent LED film display represents technology. The combination of technology and nobility can enhance the value of your brand and products.

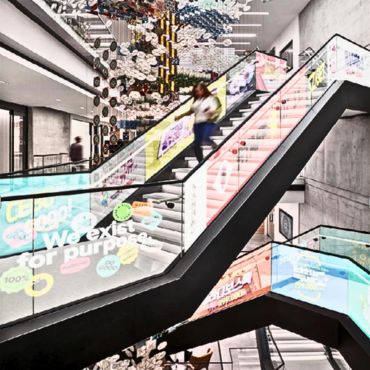

  • transparent film LED for Glass Handrail
    Glass Handrail Railing

    Whether in a shopping mall or a high-end shopping center, there are railings with glass handrails, which are the perfect place to install transparent LED crystal film screens.

  • transparent film LED for Vertical Sightseeing Elevator

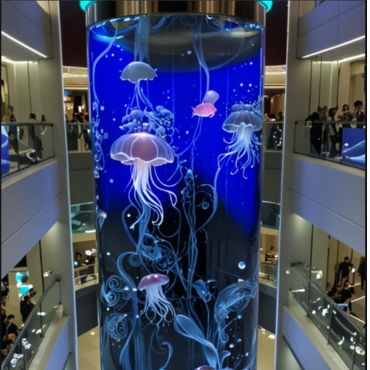

    Vertical Sightseeing Elevator

    Vertical elevators Transparent LED Film screen can enhance the technological sense of the space, advertising value and immersive experience.

Why Choose Transparent LED Film Screen With Top Shine?

Transparent LED Film Price
Easy Install

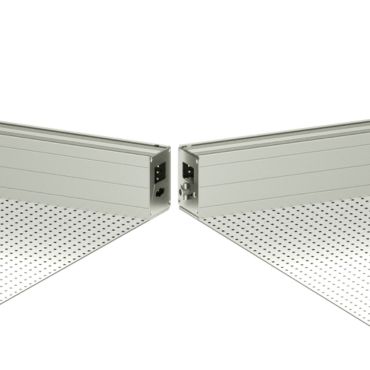

ultra transparent film led screen

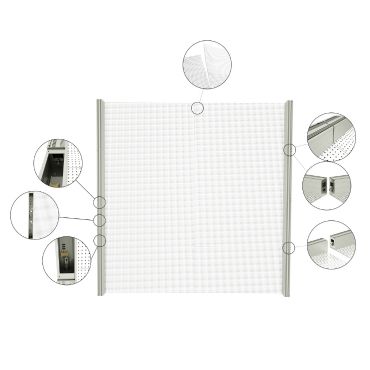

Modular Quick-release Design
transparent film led display manufacturer
High transparency
Transparent LED Film manufacturer
Seamless Splicing

Powerful R&D and Design Capabilities

Top Shine has 6 transparent LED screen design engineers with 15 years of experience.
From the electronic substrate material design of the Transparent LED Film Screen, the circuit board design of the LED lamp beads, the transparent colloid packaging design, to the separate transparent crystal film design, and the perfect combination with the aluminum profile power drive controller box, under long-term working conditions, the 16BIT high grayscale color presentation and high brightness and high reliability of the Transparent LED Film Screen are guaranteed.
Support different sizes and pixel customization

Ultra transparent film led manufacturer
transparent film led screen

Materials Selection

  1. LED lamp beads are encapsulated with large crystals and high-efficiency chips and gold wires, with built-in chips and LED Screen Resume from Breakpoint,
  2.  Anti-UV and V1 flame retardant grade crystal film is used, with high transparency, super bending ability, high temperature
  3. resistance, anti-aging, life span> 100,000 hours, no yellowing or discoloration in 5 years
  4.  Nano silver wire (AgNW) circuit layer, resistance <5Ω, no breakage after 100,000 bends
  5.  Aluminum power supply and control box

Factory & Quality Assurance

Own factory: 10,000㎡, 3 fully automated production lines, monthly production capacity of 5,000㎡
Independent laboratory: equipped with integrating sphere spectrometer, vibration test bench, color analyzer, brightness tester, etc., data comparable to SGS report.
Factory standard: full pixel inspection, promise no out-of-control LED pixel.
After-sales guarantee: global worry-free service 24-hour online guidance for installation and debugging,
Spare parts reserve: 100% timely supply of accessories.

100% Aging Test of All Transparent LED Film Screens

transparent film led factory
transparent film led manufacturer
transparent Crystal film led factory
rollable led display film

All products manufactured by Top Shine factory are simulated in extreme environments to expose potential defects in advance and ensure that the products run stably for more than 100,000 hours on the client side.

1. Power-on aging test (48-72 hours)
Phase 1 (normal temperature aging):
Under 25℃ environment, all white/all red/all green/all blue screens are displayed alternately (8 hours each)
Test content: brightness uniformity, color deviation, dead light/bright spot
Phase 2 (high and low temperature cycle):
-30℃→85℃ temperature shock (switch every 2 hours, a total of 24 hours)
Test content: material deformation, solder joint cracking, driver IC stability
Phase 3 (dynamic picture stress test):
Play 4K video (including fast flashing scenes) for 24 hours
Test content: refresh rate stability, signal transmission delay

Other Test

Flexible film LED display
Bending fatigue test

The flexible LED screen needs to be bent 5,000 times (radius R50mm) without pixel failure

Flexible film LED display factory
Vibration test

Simulated transportation environment (frequency 10-500Hz, acceleration 5G, duration 2 hours)

Flexible film LED
Optical performance testing

Measures brightness (nit), color gamut (NTSC), color temperature (K)

Flexible LED film
Transmittance verification

Detection by region (center/edge), deviation < 3%

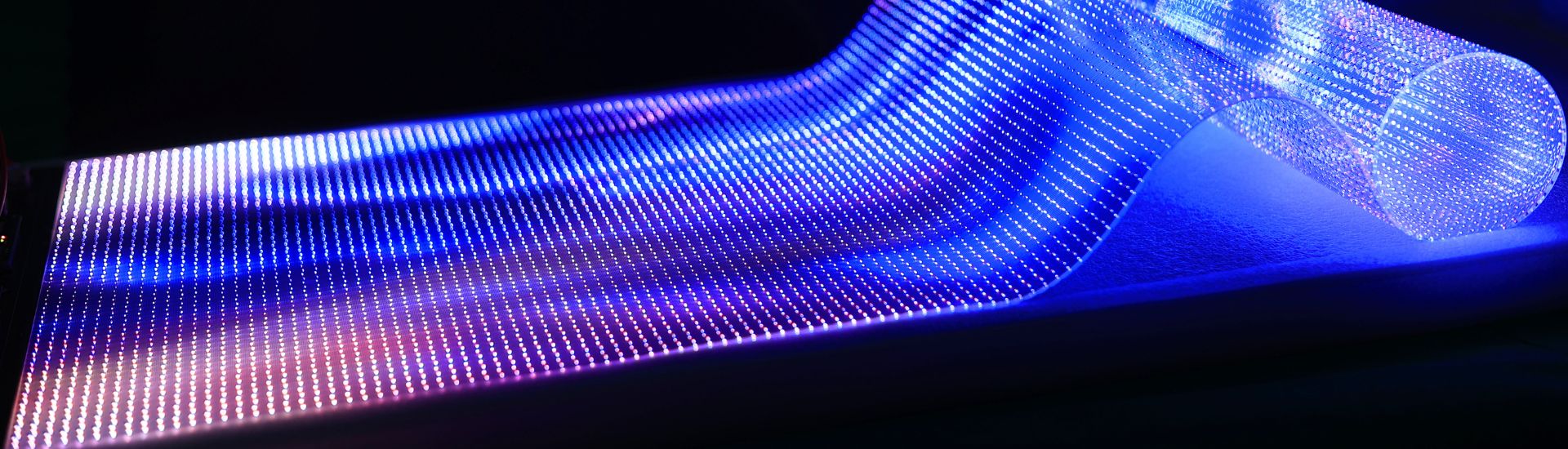

TOP SHINE transparent led film screen
Choosing us means choosing "zero risk" delivery

Transparent LED Film Screen With Pixel-Perfect Transparency





The Future, Unfolded–TOP SHINE

Light. Thin. Beyond Limits

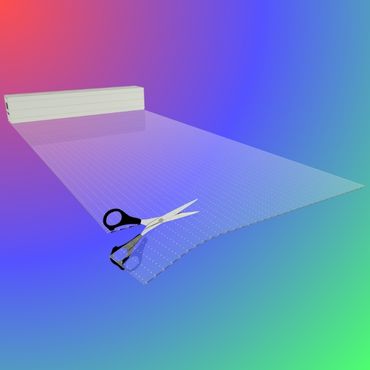

Can LED Film Screen be cut?

Yes, it can be cut to meet the different sizes of the installation site.

Can transparent LED Film display be cleaned?

There is a soft rubber layer on the surface of the circuit board, which can be cleaned with water. Please do not use chemical solutions to clean it, so as to avoid discoloration of the colloid and affect its transparency.

How to install transparent Crystal LED Film screen? Do we need stell structure?

No steel structure is required. Just spray water on the glass or acrylic and it can be attached to the surface.

Does the LED crystal film screen content update require professional operation?

We provide free software or APP, through WIFI connection, you can upload videos, pictures, texts with one click. The software is easy to understand, with operating instructions and videos. At the same time, we provide lifelong remote free training on how to use LED crystal film screen.
