LED Display Empty Cabinet Manufacturer
Advanced Engineering Capabilities – Pushing Technical Boundaries
- Precision to the Millimeter, Stability for a Decade
- 2 Factories in China
- Automated production line + own mold workshop
- 40 CNC machines, 15 bending machines, 8 laser cutting machines
- 100000+ empty cabinets Available from Stock
Why Choose Top Shine LED Display Empty Cabinet?
1. In-House R&D & Manufacturing – Full Process Control
✅ “From Design to Delivery – All Under One Roof”
• Self-developed molds & structures – No outsourcing, ensuring precision and consistency
• Customization-friendly – Adjust designs quickly based on client needs (Pitch/Size/Shape)
2. Advanced Production Equipment – Precision Guaranteed
⚙️ “Industrial-Grade Manufacturing”
• CNC machining – ±0.05mm tolerance for seamless splicing
• Laser cutting & bending – High-strength aluminum alloy, burr-free edges
• Automated spray coating – Anti-oxidation, scratch-resistant surface
3. Cost Advantage – Ready Stock, Wholesale Pricing
💰 “Mass Production = Competitive Pricing”
• Economies of scale – Lower unit cost due to high-volume production
• Ready-to-ship inventory – No waiting time, order today → ship tomorrow
• Direct factory pricing – No middlemen, save 15-20% vs competitors
✅ Faster delivery ✅Better Quality Control ✅ More Affordable
Die-casting LED Screen Cabinet Products:
Strong Cabinets, Stronger Displays – The Foundation of Professional LED Display EmptStrong Cabinets, Stronger Displays – The Foundation of Professional LED Display Empty cabinets
All die-cast aluminum cabinets are equipped with: 2 quick locks, 1 handle, 1 power board, 1 receiving card board, 2 positioning pins, 2 rubber chains, 1 connecting piece between boxes, 2 side movable beads. Can be installed in hanging or hoisting style, hoisting requires the hanging beam
Can be used in Outdoor and indoor environments
Weight:4.3kgs
LED Module size: 250*250mm *4pcs
Optional Curved Lock
Type A is soft connection that must use the LED modules with the cables
Weight:6.6kgs
LED Module size: 250*250mm * 8pcs
Optional Curved Lock
Type C is a Hard Connection with 45 degrees
Weight:4.35kgs
LED Module size: 250*250mm
Optional Curved Lock
Type B is Hard Connection that must use the LED modules with the HUB
Weight:4.35kgs
LED Module size: 250*250mm *4pcs
Optional Curved Lock
Can be used in Outdoor and indoor environments
Weight:6.65kgs
LED Module size: 250*250mm
Optional Curved Lock
Type D is a Hard Connection with Curved Lock
Weight:6.65kgs
LED Module size: 250*250mm
Optional 500*500mm
Can be used only in indoor environments, not waterproof
Weight:4.9kgs
LED Module size: 320*160mm
Front service with Magnetic Mount
Compatible with 640 and 320 mm cabinets to achieve seamless splicing
Weight: 3.3 kgs
LED Module size: 320*160mm
Front service with Magnetic Mount
Compatible with 640 and 480 mm cabinets to achieve seamless splicing
Weight:2.6kgs
LED Module size: 320*160mm
Front service with Magnetic Mount
Iron LED Screen Cabinet Products
Top Shine is an LED screen cabinet manufacturer that can provide waterproof outdoor LED display cabinets and indoor LED panel cabinets for P2.5, P,3 P,4 P,5 P6, P,8 P10 LED Display Walls.
IP65 is the Baseline, Seamless Alignment is Our Edge
This is the standard size with doors and waterproof IP65
Support 320*160mm and 192*192mm LED modules
Weight:
This is the standard size without doors and the front is waterproof IP65
Support 320*160mm and 192*192mm LED modules
Weight:7KG
For LED Banners and small LED screens that need to be serviced from the front, we can use the front-open cabinet to solve the problem. The front maintenance cabinet can be directly fixed on the wall or signboard, without maintenance space.
Double-sided LED display cabinets are usually composed of two or three units, mostly with a front-opening structure. Of course, we can also produce double-sided cabinets with front service LED modules.

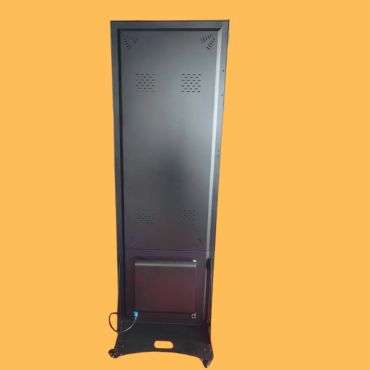

The LED poster cabinet can be single-sided or double-sided, with or without a border. The bottom can be widened for fixed installation, or can add 4pcs wheels to make mobile LED posters. Multiple LED posters can be spliced into a large screen.

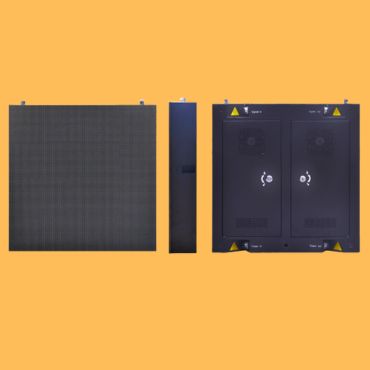

The indoor LED display cabinet can be maintained from front to back. The size of the cabinet is calculated according to the LED module. It is not recommended to make a single empty cabinet too large, as it is easy to deform and inconvenient to transport and install.
Custom LED Display Cabinet
Your Design, Our Expertise
- Shape Innovation – Curved, cylindrical, spherical and free-form structures
- Size Adaptability – Seamless design for any dimension requirements
- Color customization – In addition to the normal black, gray, and white LED display cabinets, we can also match the colors according to the samples and color card numbers you provide and then spray them.
- Material customization – The materials can be customized according to requirements, such as iron, galvanized sheet, stainless steel and aluminum LED display cabinet. Material thickness can also be selected, usually 0.8mm, 1.0mm, 1.2mm, 1.5mm and 2mm
Professional Empty LED Display Cabinet Manufacturer
Related Product
Seamless. Sturdy. Scalable.
Designed for Tomorrow’s LED Display Tech
An empty cabinet is a structural frame without LED modules, power supplies, and control systems.
Yes, if the LED Display module size and holes mounting system are compatible. Provide your LED module specs for verification.
Passive cooling (ventilated design) or active options (built-in fans/heat sinks). No thermal paste required for our aluminum frames.
This is by the drawing and quantity, usually 15- 20 days. If it is the die-casting aluminum Rental LED display cabinet with a new mould, it usually needs 90 days to make the mould and products.
If you order outdoor LED display cabinets, we usually do IP65 waterproof level.
If you order indoor LED Screen cabinets, we usually do IP31.
