P12.5 LED Module For Bus LED Screen Panel

China Factory
One of the developers of P12.5 LED modules
PCB designed specifically for bus LED screens
The mask adopts a sun hat design to improve brightness and contrast
Supports amber (commonly used for warnings/prompts) and white (basic information) color

Why Choose P12.5 LED Moddule?

Compared with P10 and P16 products, the main difference between P12.5 LED modules lies in the number of lamp beads and scanning method. P12.5 has 6400 sets of LED lamp beads per square meter, which is 3600 less than P10’s 10000 sets of lamps and 2494 more than P16’s 3906 sets of lamps. It has achieved an intermediate value in terms of cost and effect. P10 generally adopts 4 scans or 2 scans, while P12.5 adopts 2 scans or static scanning, which also has a great advantage in brightness and power.

Many bus LED displays use P12.5 LED modules because the size of P12.5 is 200MM in height, which is not too big, and is very suitable for the front LED destination display and the rear LED sign of the bus.

Most P12.5 LED modules use direct plug-in or surface mount, amber or white LED lamp beads, because amber LED has low power consumption, high penetration and high brightness in strong light environments to ensure that passengers can be clearly identified from different angles.

P12.5 DIP LED MODULE DIP P12.5 LED MODULE p12.5 smd led module

P12.5 LED Module Products:

Professional surface mount and direct plug LED display module manufacturer, providing amber LED modules, white LED modules, and full color LED modules

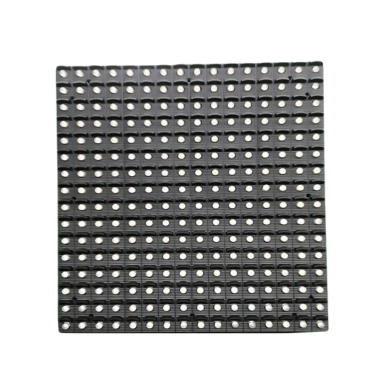

200*200mm DIP LED Module

Colors: Amber, yellow, White, RGB

지금 문의하기

400*200mm DIP LED Module

DIP LAMPS: 546 504 and 346

지금 문의하기

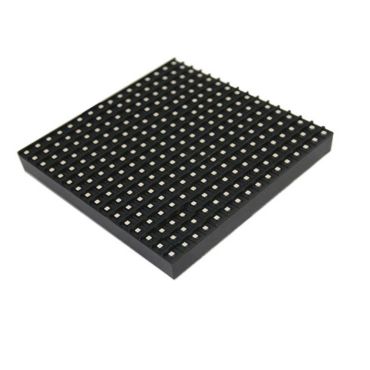

200*200MM SMD LED Module

SMD Lamps: 3535 and 2727

지금 문의하기

3개의 제품이 발견되었습니다.

Functions of Bus LED display screen made of P12.5 LED Modules

Dynamic Information Display: Real-time updates of bus route numbers, destinations, arrival info, etc.
Remote Control: Synchronizes with dispatch centers via bus or wireless systems for real-time content updates.
환경 적응: Auto-brightness adjustment (with light sensors) for day/night visibility.
Hardware interface: RS232, RS485, RJ45
Software interface: SDK, JAVA, API
